Network StandardIEEE 802.3、IEEE 802.3u、IEEE 802.3x, IEEE 802.ab, IEEE 802.AF/AT
Port8*10/100/1000Mbps RJ45 port
POE Power8*10/100/1000Mbps RJ45 port support POE+
The whole power max. is120W
Each port max. power supply reached 30W
POE Connection1-8 port support IEEE802.3af/at
Both1/2+、3/6- and 4/5+、7/8-
End-span
PerformanceStore and forward
MAC address table 4k
Switching capacity16Gbps
Forwarding Rate10BASE-T:14880PPS/port
100BASE-tx：148800pps/port
1000BASE-tx：1488000pps/port
Port FunctionPower priority mechanism, fast and forward, MAC automatic
learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode
EnvironmentOperating Temperature：-10℃ - -55℃

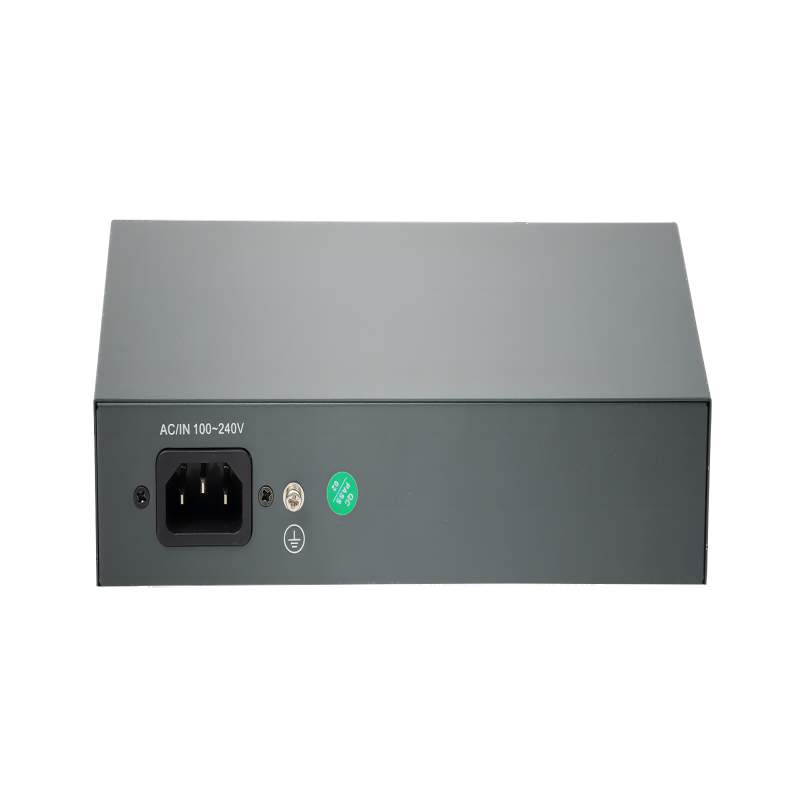

PowerBuilt in power base board
Input：220V，50HZ，Output：DC52V±5% 2.3A
≤120W
Weight &Size1KG
200mm×118mm×44mm(L×W×H)
