| Chip model | RTL9601D-VA3 |
| Memory | 8MB SIP NOR Flash/32MB DDR2 SOC |
| Bob Driver | GN25L95 |
| XPON Protocol Specification | Comply ITU-T G.984 GPON standard:G.984.1 general characteristicsG.984.2 physical Media Dependent (PMD) layer specificationsG.984.3 transmission convergence layer specificationsG.984.4 ONT management and control interface specificationSupport DS/US transmission rate to 2.488 Gbps/1.244 GbpsWavelength: 1490 nm downstream & 1310 nm upstreamComply with class B+ type PMDPhysical distance reach to 20 kmSupport Dynamic Bandwidth Allocation (DBA)GPON Encapsulation Method (GEM) supports Ethernet packetSupports GEM header removal/insertion and data extraction/segmentation (GEM SAR)Configurable AES DS and FEC DS/USSupport up to 8 T-CONs each with priority queues (US) |
| Network Protocol Specifications | 802.3 10/100/1000 Base T Ethernet ANSI/IEEE 802.3 NWay auto-negotiation 802.1Q VLAN tagging/un-taggingSupport flexible traffic classificationSupport VLAN stakingSupport VLAN Intelligent Bridging and Cross Connect mode |

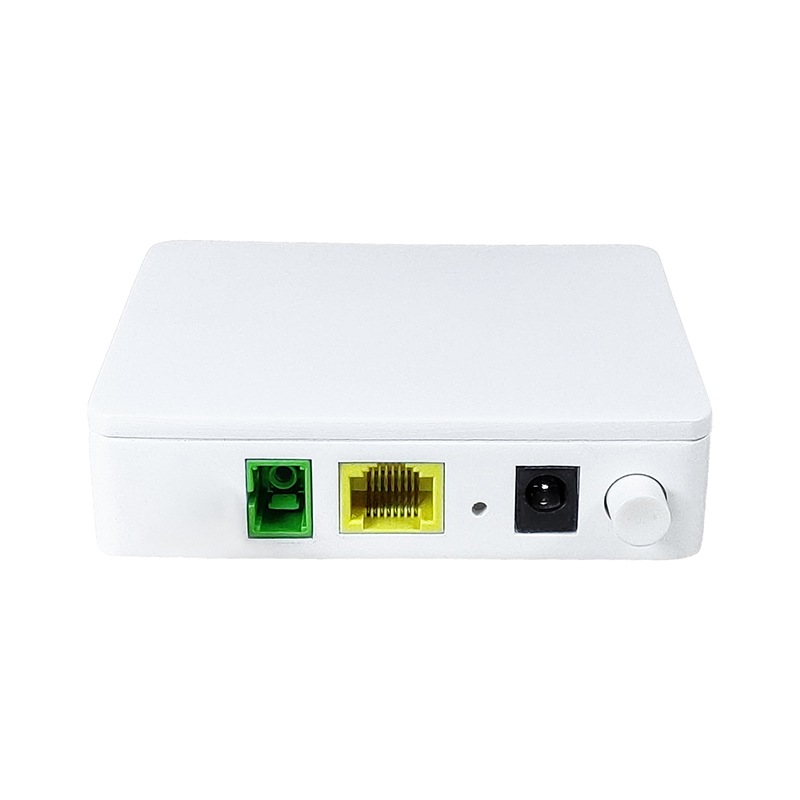

| Interface | WAN: One Giga optical interface (APC or UPC)LAN: 1*10/100/1000 auto MDI/MDI-X RJ-45 ports |
| LED Indicators | Power, PON, LOS, LAN |
| Buttons | Reset |
| Power Supply | DC12V 0.5A |
| Product Size | 90X72X28mm(length X width X height) |
| Work Environment | Working temperature: 0°C—40°CWorking humidity: 5—95% |
| Security | Firewall, Dos Protection, DMZ, ACL, IP/MAC/URL filtering |
| WAN Networking | Static IP WAN connection DHCP client WAN connection PPPoE WAN connection IPv6 dual stack |
| Management | Standard OMCI (G.984.4)Web GUI (HTTP/HTTPS)Firmware upgrade via HTTP/HTTPS/TR069CLI command via Telnet/consoleConfiguration backup/restoreTR069 managementDDNS, SNTP, QoS |
| Certification | CE/WiFi certification |
